Rock drill BBG BH9 V T - H22x108
In stock
SKU
4-000-000-03563
£2,508.20
T-handle - Retainer Clip - Vibration reduced
| Product Name | Art. nr. | Weight | Delivery Time | Price | Qty |
|---|---|---|---|---|---|
| Rock drill BBG BH9 V T - H22x108
T-handle - Retainer Clip - Vibration reduced |
4-000-000-03563 | 15.80 | On request | On request |

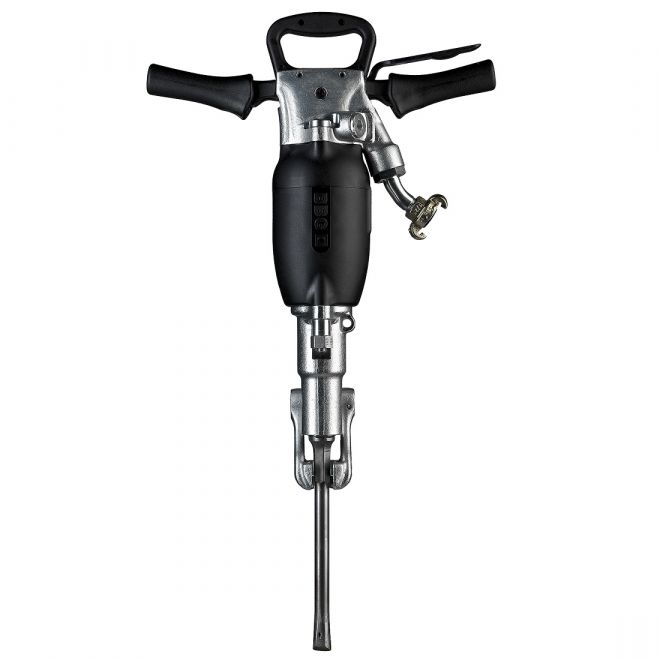

Rock drill BBG BH9 V T - H22x108 - T-handle - Vibration dampened.
The BBG BH9 VT/VTH Pneumatic rock drills with a t-handle are middle weight vibration reduced rock drills, which is a big plus. This gives the user a high drilling performance at low weight. The low air consumption gives the BH9 low operating costs, and with the compact design it enables an easy handling in tight spaces.
Applications:
- Medium-duty drilling activities.
- Drilling holes of 16-32mm.
- Most suitable for manual vertical drilling.
- With extra blowing functionality for cleaning the drill hole.
BBG hammers are highly reliable and have very low maintenance due to the uncomplicated and stable construction. The forged stainless steel with zinc surface protection in body and cover, as well as the robust bolt connections are able to withstand high working pressure and ensure an exceptionally long life.
| Weight | 15.800000 |
|---|---|
| Manufacturer | BBG |
| Country of Manufacturer | Austria |
| Flushing Air / Water | *** / optional |
| Silencer | *** |
| T-handle | *** |
| Trigger control | *** |
| Vibration reduced | *** |
| Vibration level (m/s2) | 12,9 |
| Sound level (dB(A)) | 108 |
| Length (mm) | 580 |
| Bore (mm) | 52 |
| Piston stroke (mm) | 40 |
| Blows (1/s) | 47,5 |
| Air consumption (l/s) | 15,2 |
| Operating Pressure (bar) | 5 |
| Rotations (U/min) | 280 |
| Moment of Rotation (Nm) | 8 |
| Energy (J) | 20 |
| Connection thread Air | G ¾" |
| Connection thread Water | G ½" |
| Shank size Hex. (mm) | 22 x 108 |
| Restraint system | Haltebügel / Klinksluiting / Retainer Clip |
